- Solid Dose Dispensing

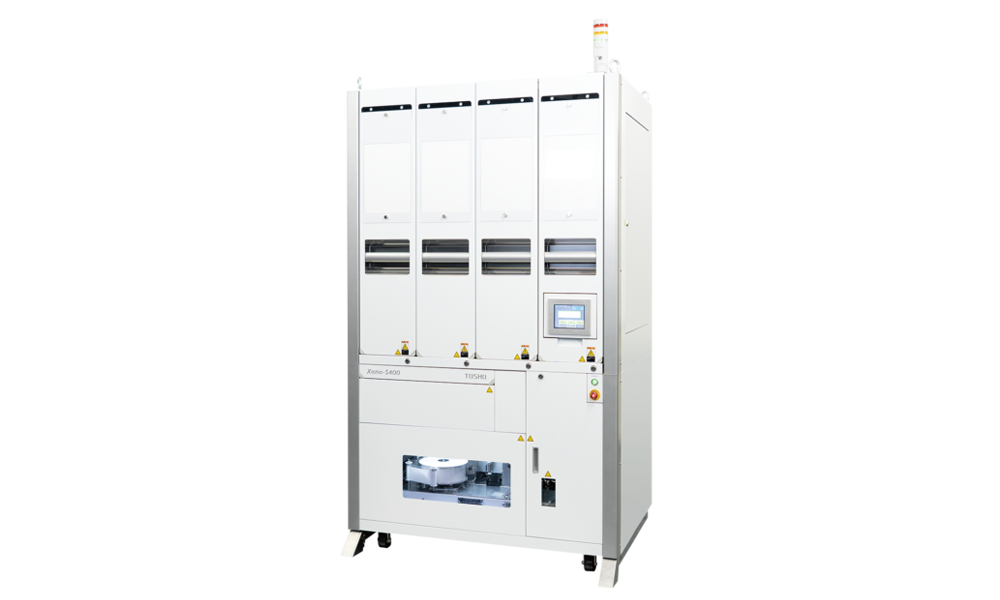

Xana-S400
The S-Series is built for high cleanability and maximum durability inherited from former models, ensuring stable operation.
Watch Intro Video
View Features
Increased Production Efficiency
The productivity of a dose dispensing machine relies heavily on its hardware, software, and operational workflow.
TOSHO’s integrated hardware and software solutions maximize efficiency throughout the dispensing process.
Ensure Stable Operation & Reduce TCO
The Xana S-Series is designed based on TOSHO’s decades of experience in dose dispensing.
Built with maximum durability inherited from previous models, the S-Series ensures long-term, stable operation.
Support Safety & Compliance

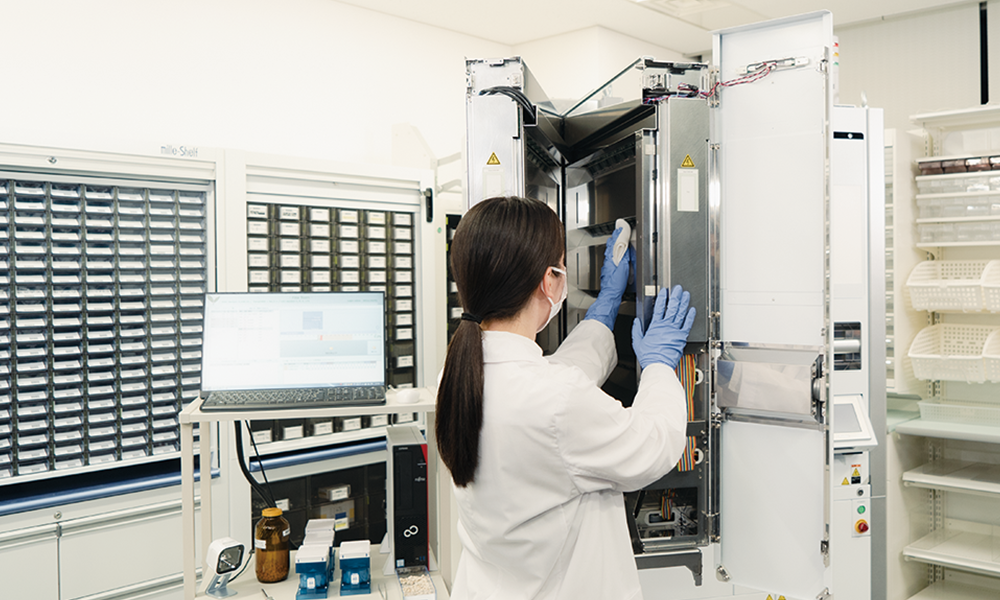

The most significant advancement of the Xana S-Series is its enhanced cleaning access.
The main tablet-dropping compartments, which require frequent cleaning, are fully accessible—mostly without the need for a screwdriver.

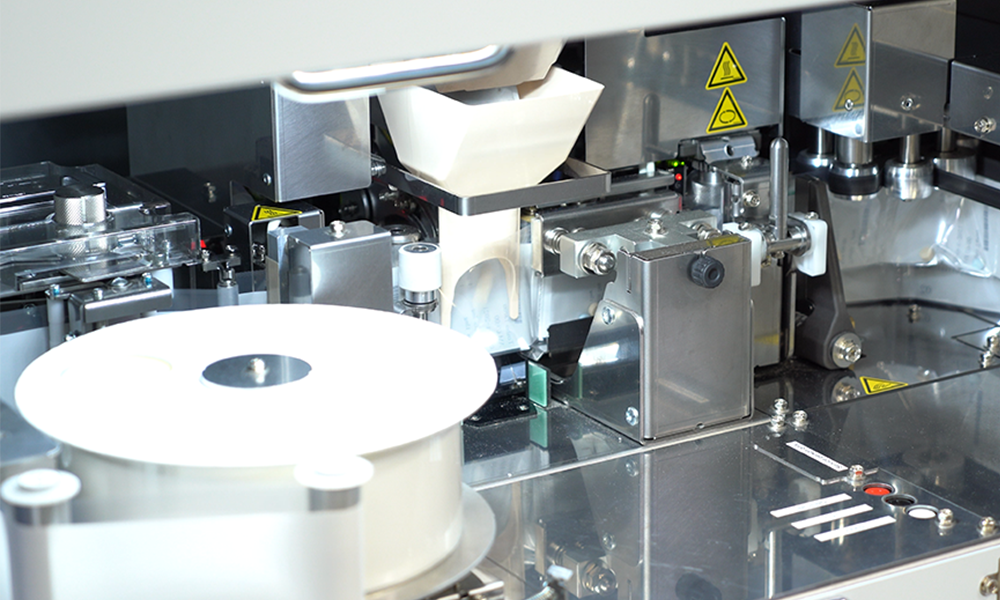

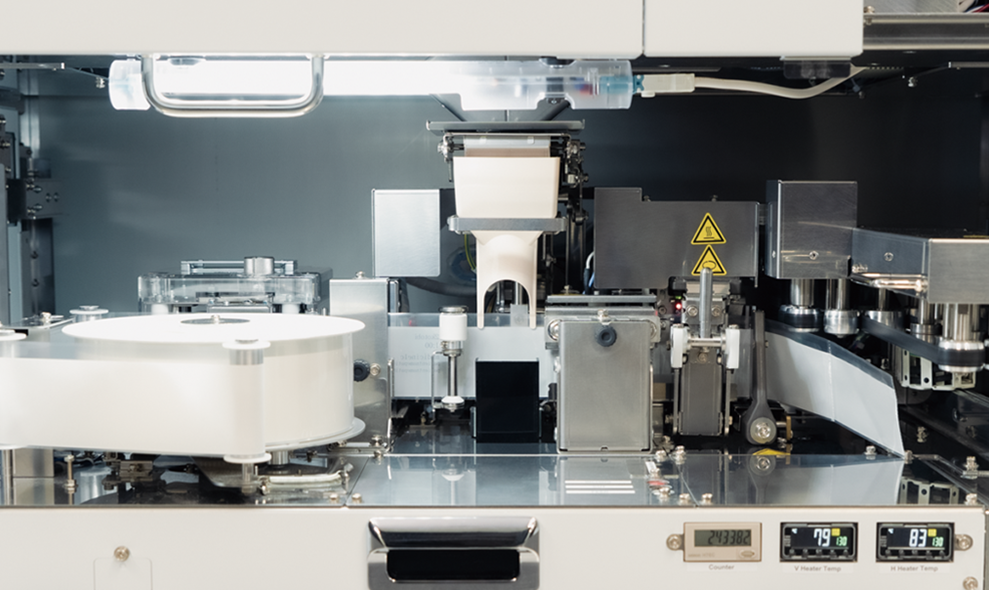

Key internal components along the tablet path can also be easily detached and washed to maintain strict hygiene standards.
Error-Free Dispensing
TOSHO machines are engineered to maintain high accuracy and minimize the risk of dispensing errors.

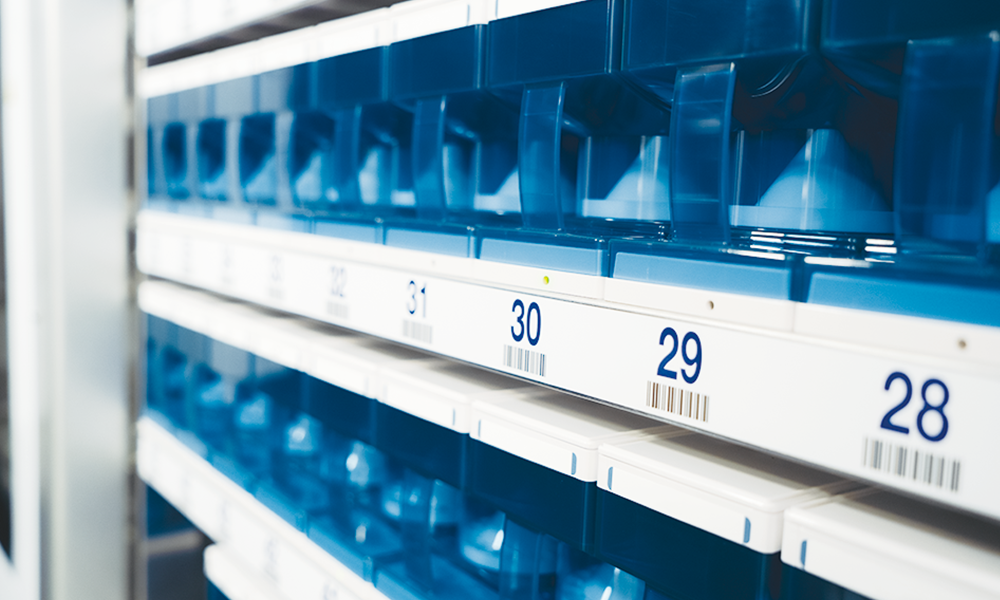

Each Rotary Cassette is managed by the Intelligent Feeder (IF) system to ensure proper placement.
If an incorrect cassette is inserted, LED lights instantly alert the operator and lock operation to prevent mistakes.
Spec
- Product Name
- Model
- Number of Rotary Cassettes
- Conveyor Unit
- Machine Size
- Weight
- Floor Plate Size
- Power Source
- Rated Power
- Frequency
- Noise Level
- Packing Speed
- Applied Standard
- Dose Dispensing Machine
- Xana-S400
- 400
- 66 Cells Manual Filling Conveyor
- W1160 mm x H1960mm x D830mm (Not including the height of the alarm light)
- 690kg(Without Rotary Cassettes.)
- W1160mm × D1215mm (30kg)
- 110-240VAC Single phase
- 660VA
- 50Hz/60Hz
- 70dBA
- 54 pouches per minute
-
UL61010-1 : 2012 + AMD1
CSA C22.2 No. 61010-1-12 + AMD1
FCC Part15 Subpart B, Class A
ICES-003 Issue 6 + Amendment 1, Class A
2014/30/EU: EMC Directive
2014/53/EU: RE Directive
2014/35/EU: Low Voltage Directive
2011/65/EU: RoHS Directive
