- Solid Dose Dispensing

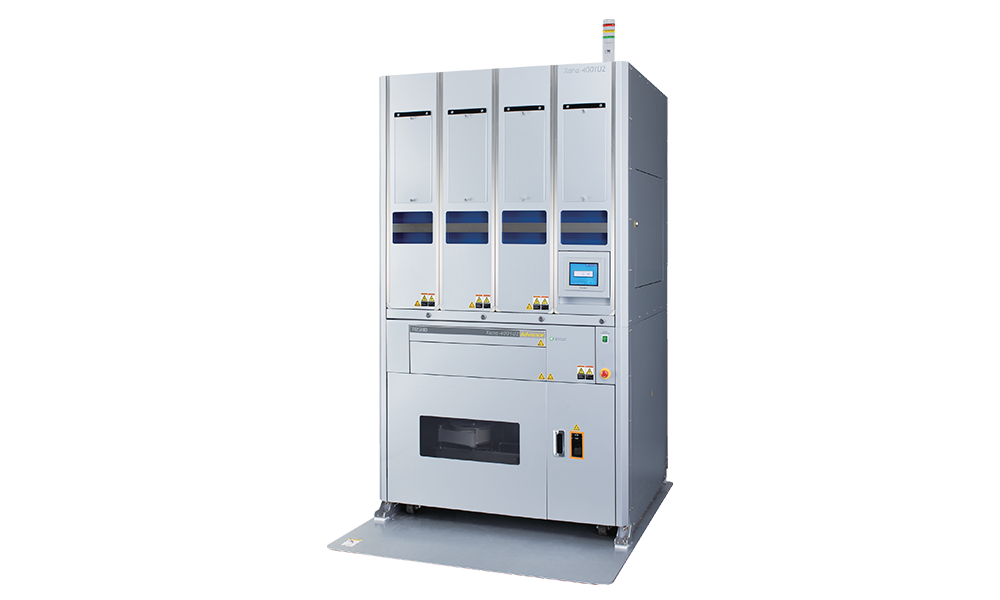

Xana-4001U2
Advance
Engineered to strict European standards for high-volume dispensing speed and durability.
Watch Intro Video
View Features
High Capacity & Intelligent Management

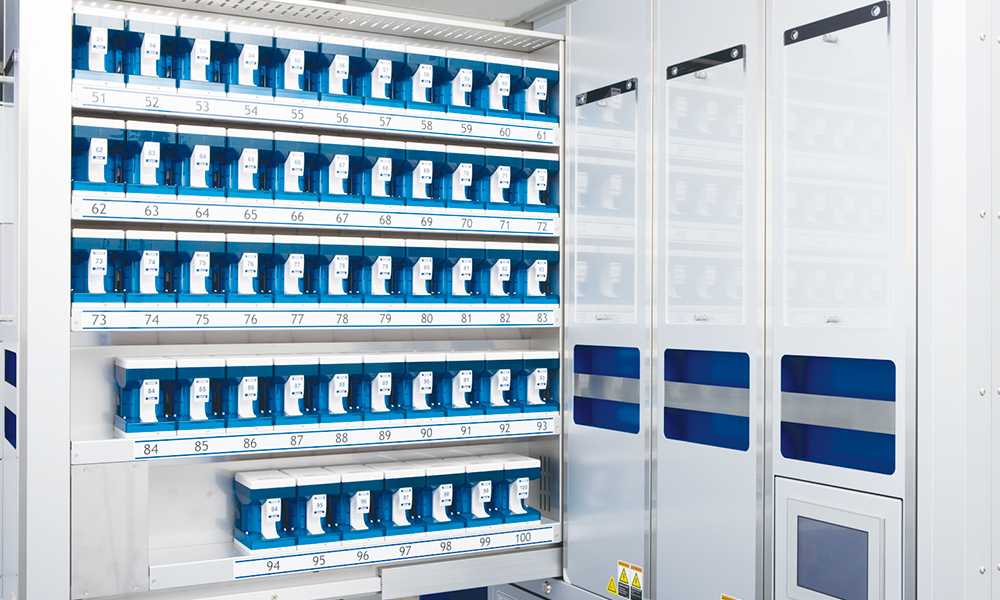

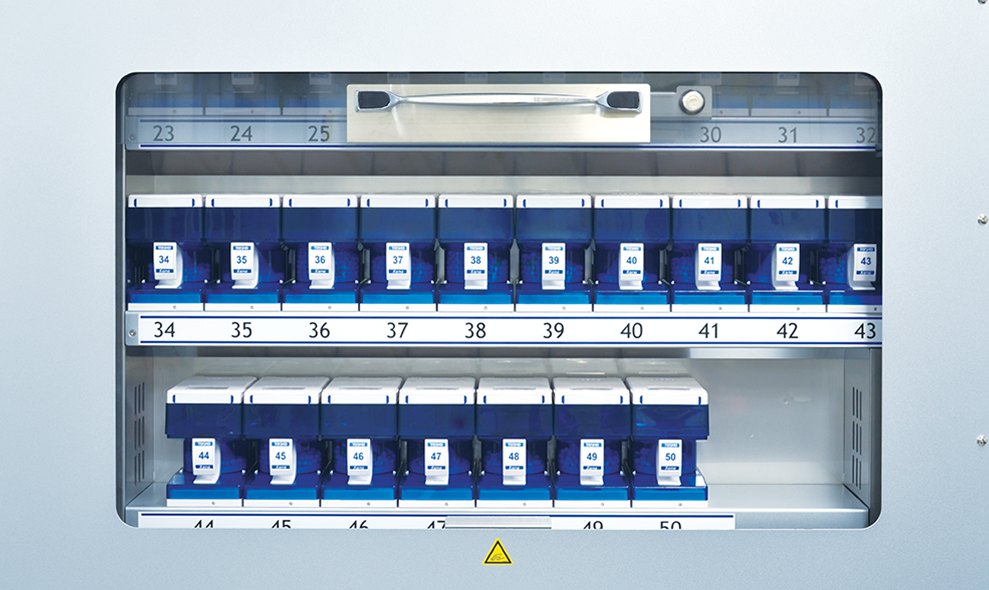

Minimized dead space delivers TOSHO’s largest cassette capacity—holding up to 100 cassettes per shelf and 400 in total.
LED indicators instantly highlight empty cassettes for rapid refilling.

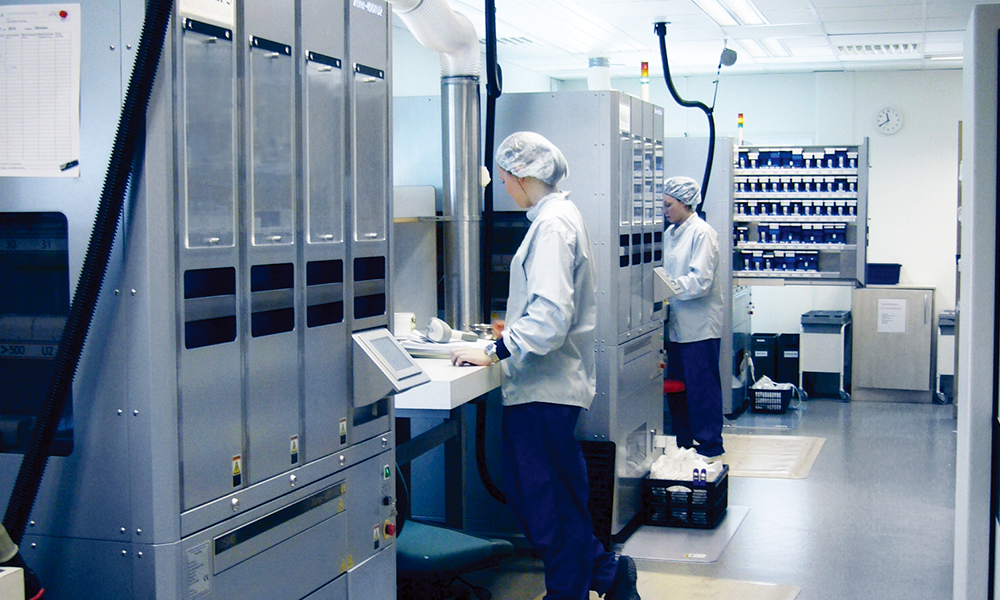

Proven Performance in Europe
Trusted by large-scale European facilities, the Xana-4001U2 Advance combines exceptional reliability with a high-speed output—including full data printing.
Its robust housing minimizes malfunctions to ensure continuous operation.
Comprehensive Risk Management

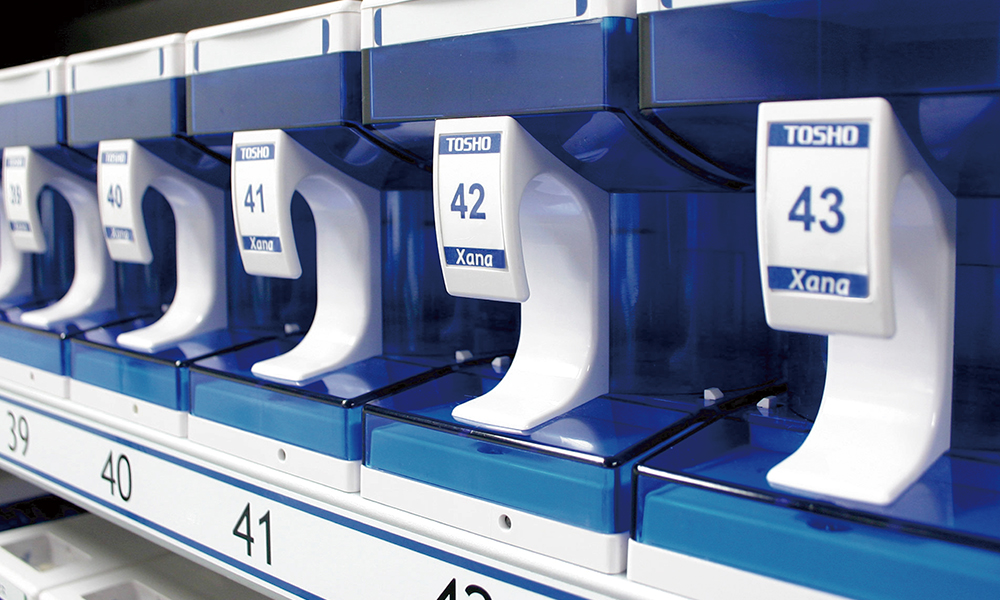

The Intelligent Feeder (IF) system automatically recognizes cassettes to prevent placement errors, while LED-guided conveyors reduce manual errors.
Equipped with highly visible alarm lights, the system ensures maximum safety across all processes.
Spec
- Product Name
- Model
- Machine Size
- Floor Plate Size
- Weight
- Power Source
- Frequency
- Maximum Power Consumption
- Maximum Current
- Noise Level
- Control
- Medicine Cabinet
- Conveyor Unit
- Manual Filling Tray
- Packing Unit
- Printer
- Pouch Size
- Packing Speed
- Applicable EU Directive
- Option
- Dose Dispensing Machine
- Xana-4001U2 Advance
- W1200mm×D1050mm×H1985mm
- W1200mm×D1500mm
- 930kg(Without Rotary Cassettes.)
- AC120V / AC230V
- 50 / 60Hz
- 960VA(AC120V) / 920VA(AC230C)
- 8A(AC120V) / 3A(AC230V)
- Below 70dB
- De-centralized multi CPU control
-
400 rotary cassette
(S size×176, M size×224)
IF feeder base - Semi-automatic conveyor unit with LED guide.
- 66 filling box spaces
- Horizontal packing unit
- Thermal printer. INK Ribbon FINE is recommend to use for the high print quality.
- W80mm×H70mm (fix size only)
- 54 pouches / min (TOSHO factory validation standards)
-
EMC Directive
LVD Directive
RE Directive
RoHS Directive - Extra manual filling tray RFID reader controlling unit (for BENJAMIN user)
