- Solid Dose Dispensing

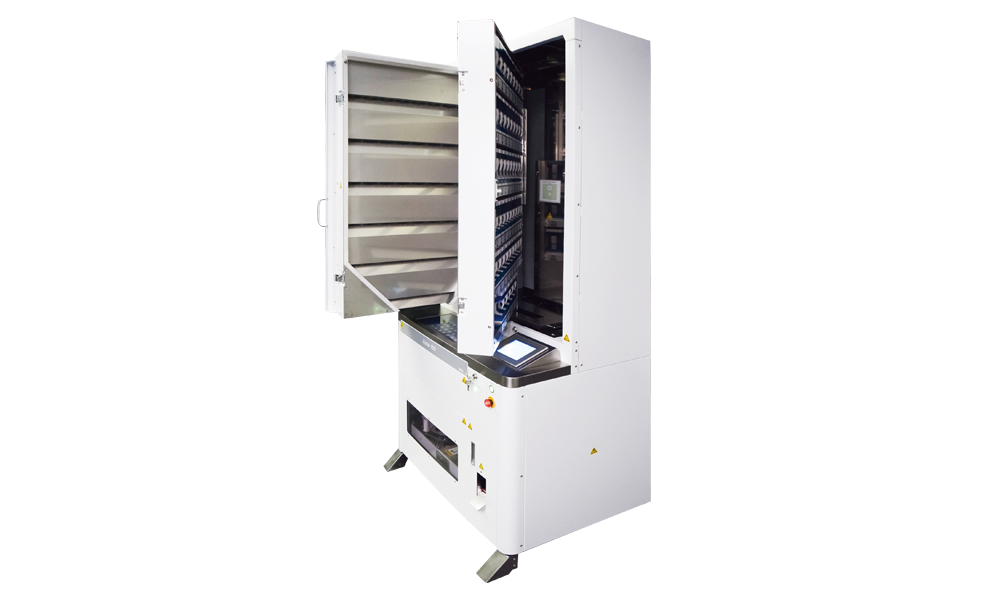

Xana-100
The Xana-100 fits seamlessly into compact spaces while delivering the same high speed and reliability as larger models.
View Features

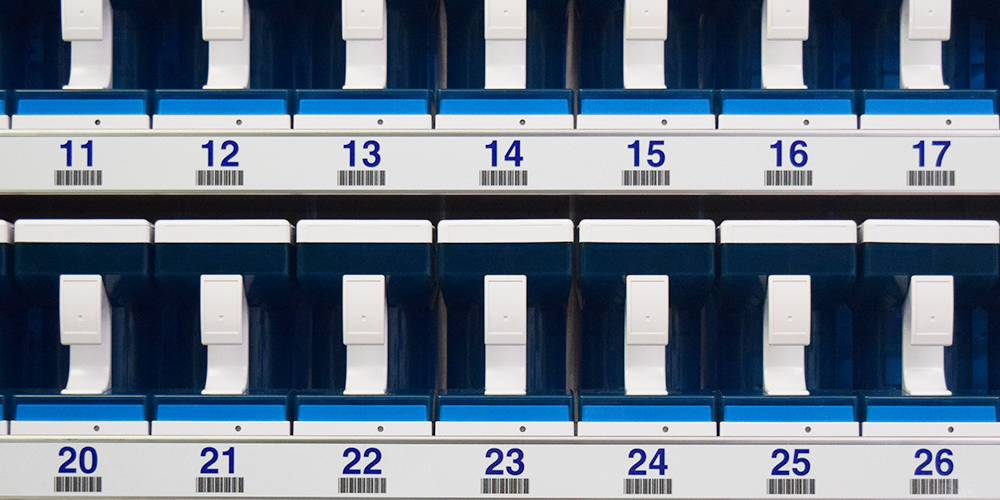

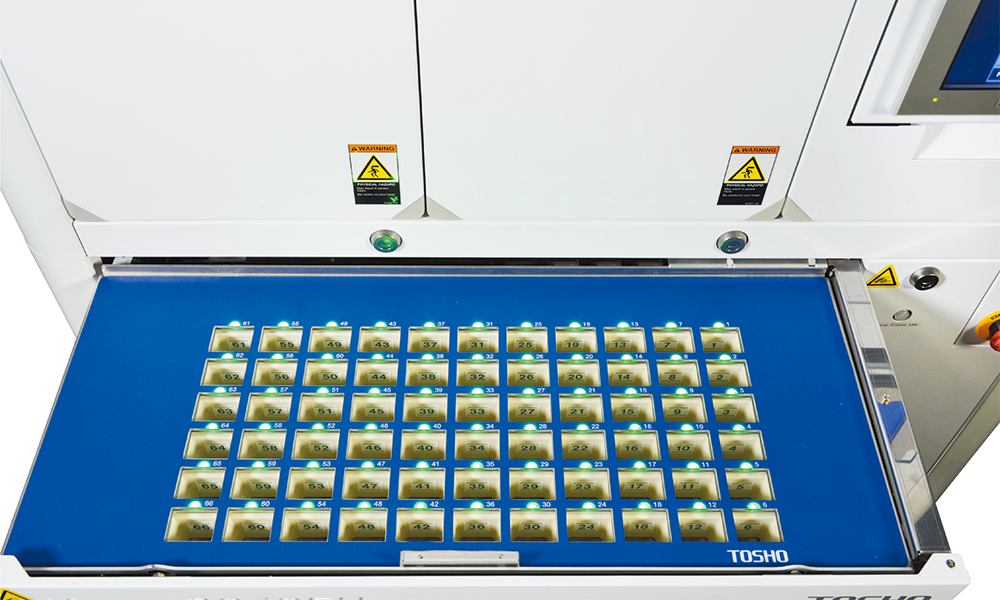

66-Box Semi-Auto Conveyor Unit with LED Guide
The 66-box conveyor unit holds tablets filled manually.
Each box features an LED light guide to indicate the correct position.
This ensures easy, error-free filling of complex medication regimens.

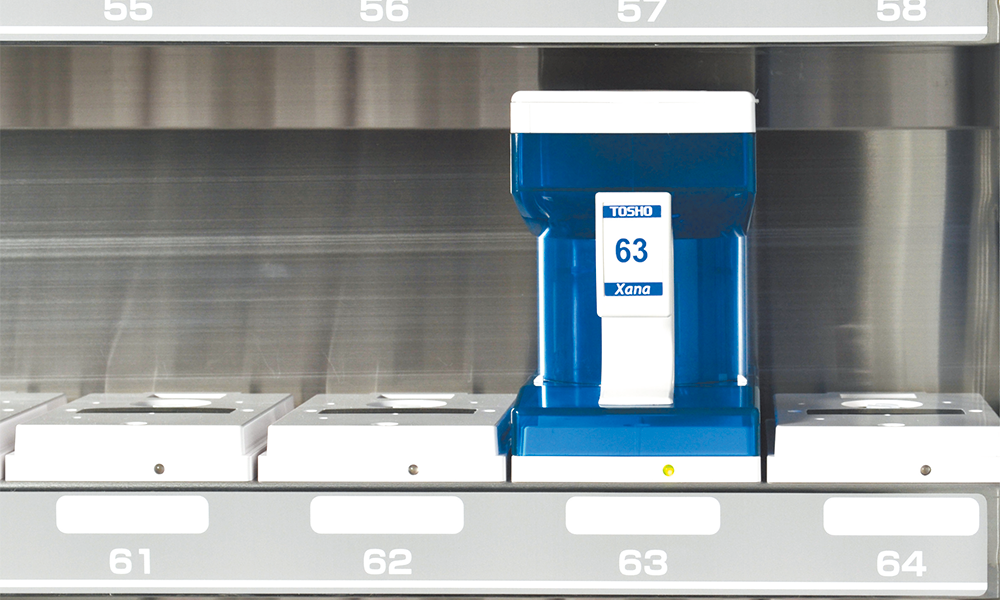

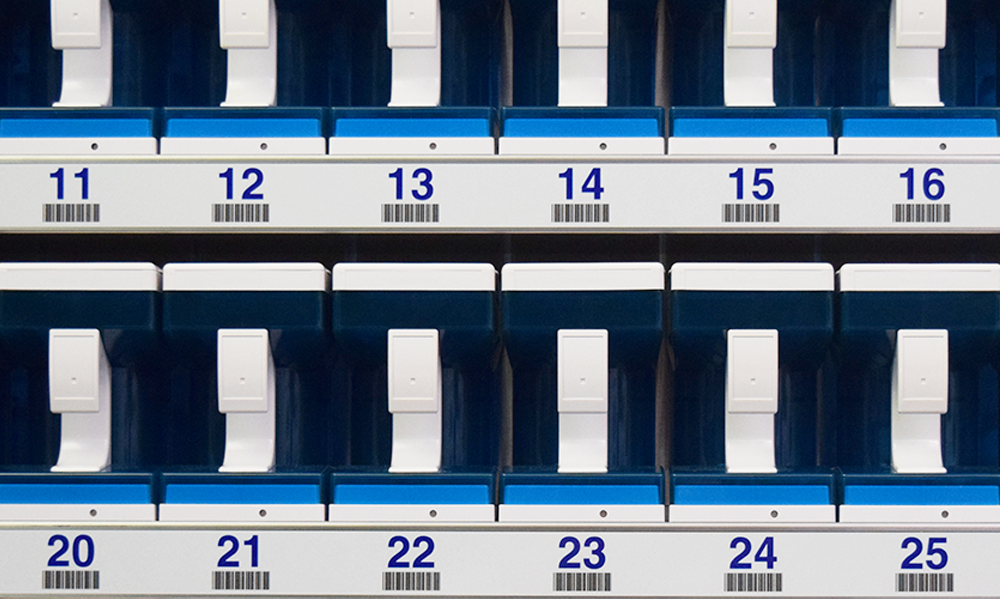

Rotary Cassette Automatic Identification
Each Rotary Cassette is automatically recognized by the Intelligent Feeder (IF) system to ensure proper placement.
LED lights instantly alert the operator if an incorrect cassette is inserted.
All U2 Function (Optional Feature)
The All U2 Function is available on the Xana-100 to maximize efficiency.
This function allows Rotary Cassettes to be placed in any available slot.
The system automatically recognizes interchangeable cassettes for flexible operation.
Spec
- Product Name
- Model
- Number of Rotary Cassettes
- Machine Size
- Weight
- Floor Plate Size
- Power Source
- Frequency
- Maximum Power Consumption
- Maximum Current
- Noise Level
- Pouch Size
- Packing Speed
- Applicable EU Directives
- Dose Dispensing Machine
- Xana-100
- 100
- W900mm×D600mm×H1960mm
- 350kg(Without Rotary Cassettes.)
- W900mm×D960mm
- AC120V / AC230V
- 50 / 60Hz
- 960VA(AC120V) / 690VA(AC230V)
- 8A(AC120V) / 3A(AC230V)
- Under 70db
- W80mm×H70mm(fix size only)
- 54 pouches / min. 50 pouches / min. (Dispensed by conveyor)
- EMC:2014 / 30 / EU R&TTE:1999 / 5 / EC LVD:2014 / 35 / EU RoHS: 2011 / 65 / EU
