Tablet counter
ITC-Duo
Fast, effortless automated counting for dispensing cassettes.
Watch Intro Video
Discover the key features and operations of the ITC-Duo.
View Features

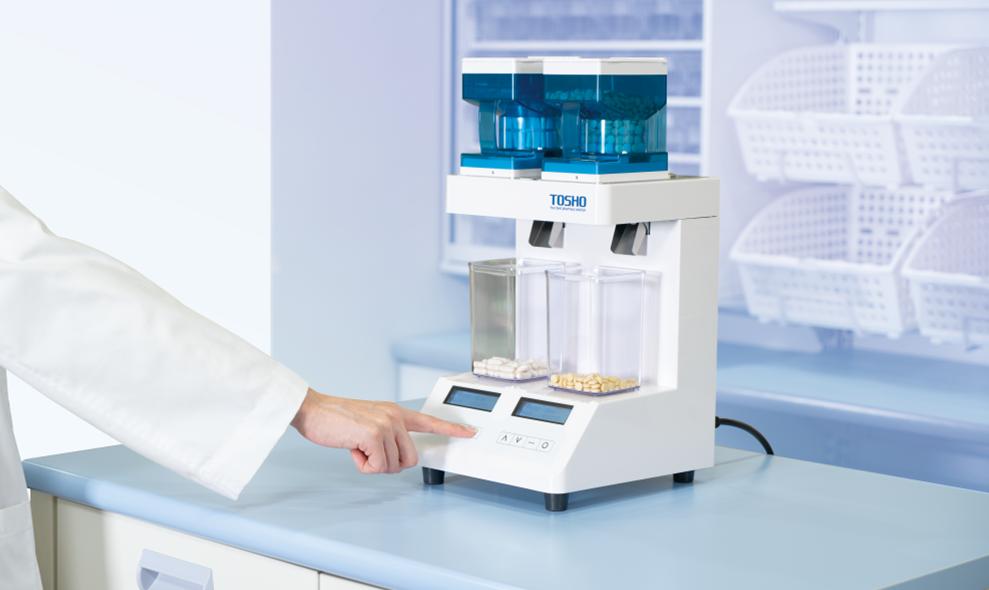

One-Touch Operation

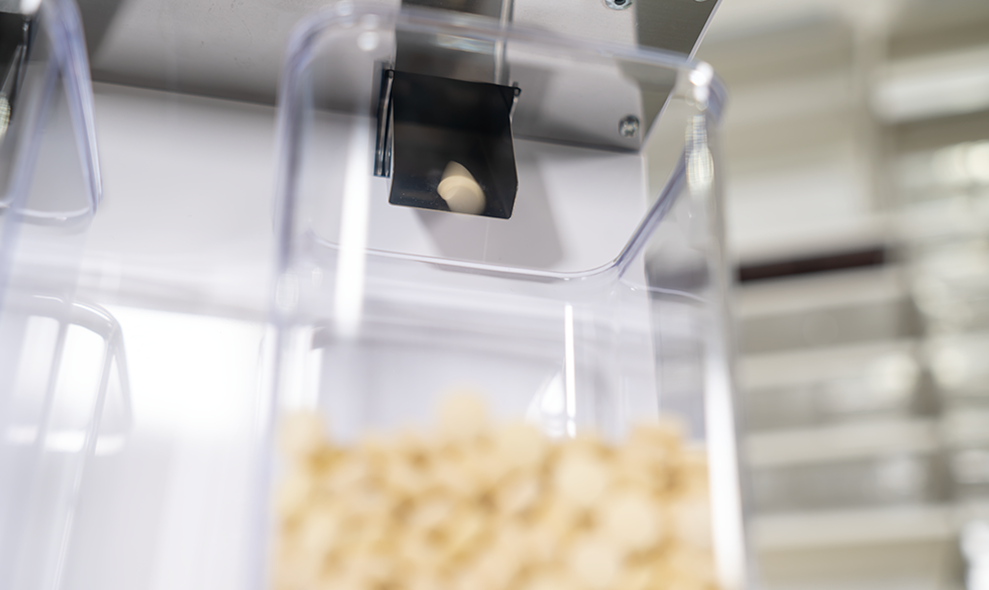

Simply place a cassette on the unit and press Start to automatically count tablets, discharging them cleanly into the receiving cup below.

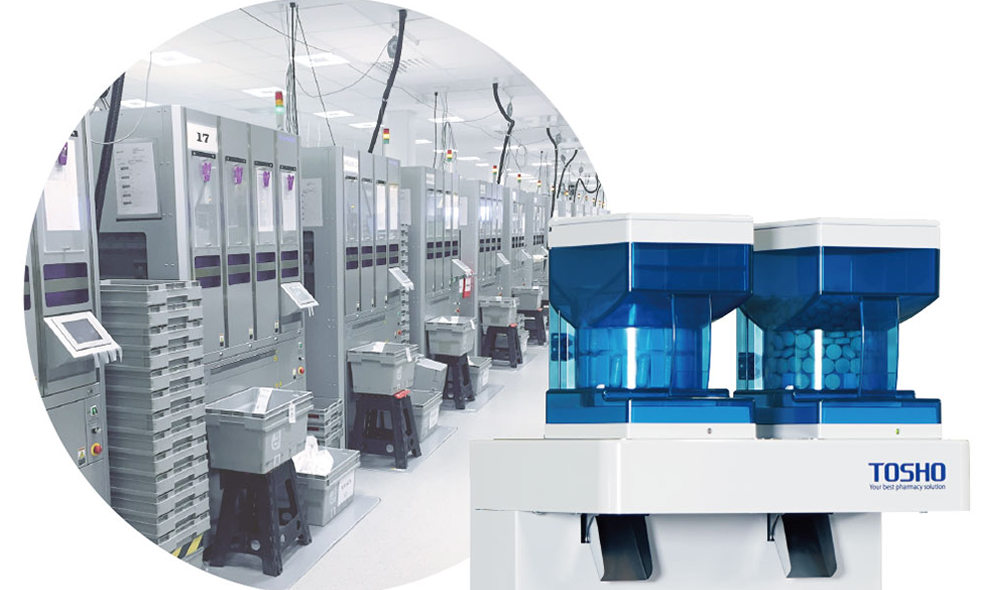

High-Volume Dual Counting
The ITC-Duo can count two cassettes at the same time, allowing large quantities of tablets to be counted efficiently.
It is ideally suited for Centralized Dispensing Facilities with high production volumes.

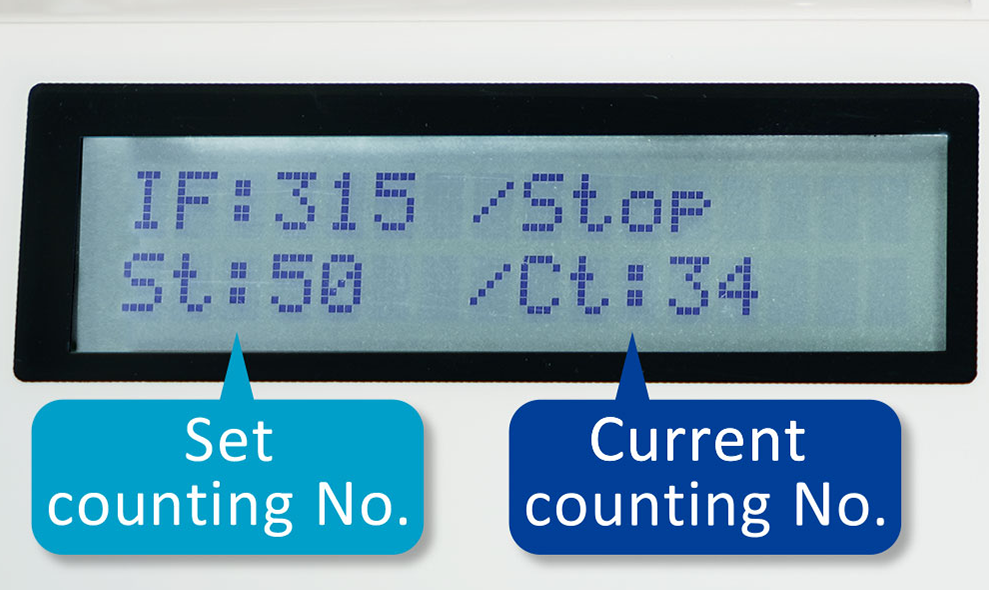

Precision Counting & Specified Dispensing
Beyond full-cassette total counts, the ITC-Duo can dispense exact target quantities into the cup to support inventory management and unit-dose dispensing.
Spec
- Product Name
- Model
- Machine Size
- Weight
- Power Cable
- Power Voltage
- Frequency
- Fuze
- Bulit-in power supply
- Max power consumption
- External connection device
- Feederbase (Cassette size)
- Installation environment
- safety standard
- Other specification
- Tablet Counter
- ITC-Duo
-
W218mm×D235mm×H318.5mm (Cassette on top=H416.9mm)
( Protrusions such as screws are not included in the machine size.) -
5.0kg
-
Ground:Yes
Cable Length:3m - 110-130V,220-240V
- 50Hz/60Hz
- HBC AC 100V 1.6A ×2
- DC12V Switching power supply x1
- 12VA
-
PC (USB)
(Not included with the ITC-Duo. It must be purchased separately.) - FB-04 x2 (for BC2 cassette)
-
Inside room environment
Operating temperature: 15-35°C
Operating humidity: 20-60%
Altitude: Under 2000m -
UL standard conformity
CSA standard conformity
EN standard conformity -
Noise level: Under 70dB
Voltage fluctuation range: ±10%
